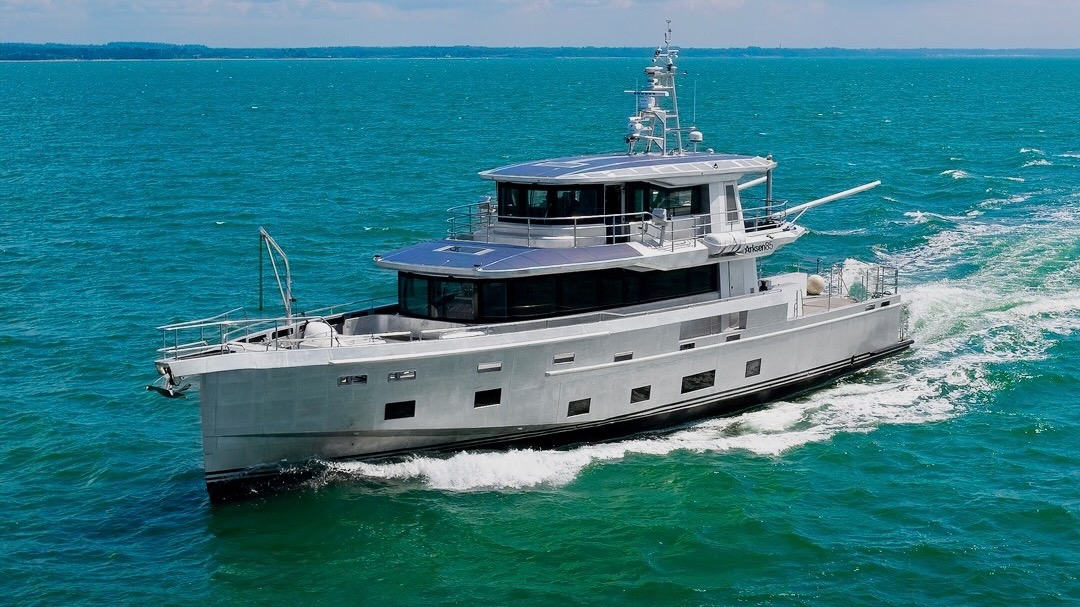

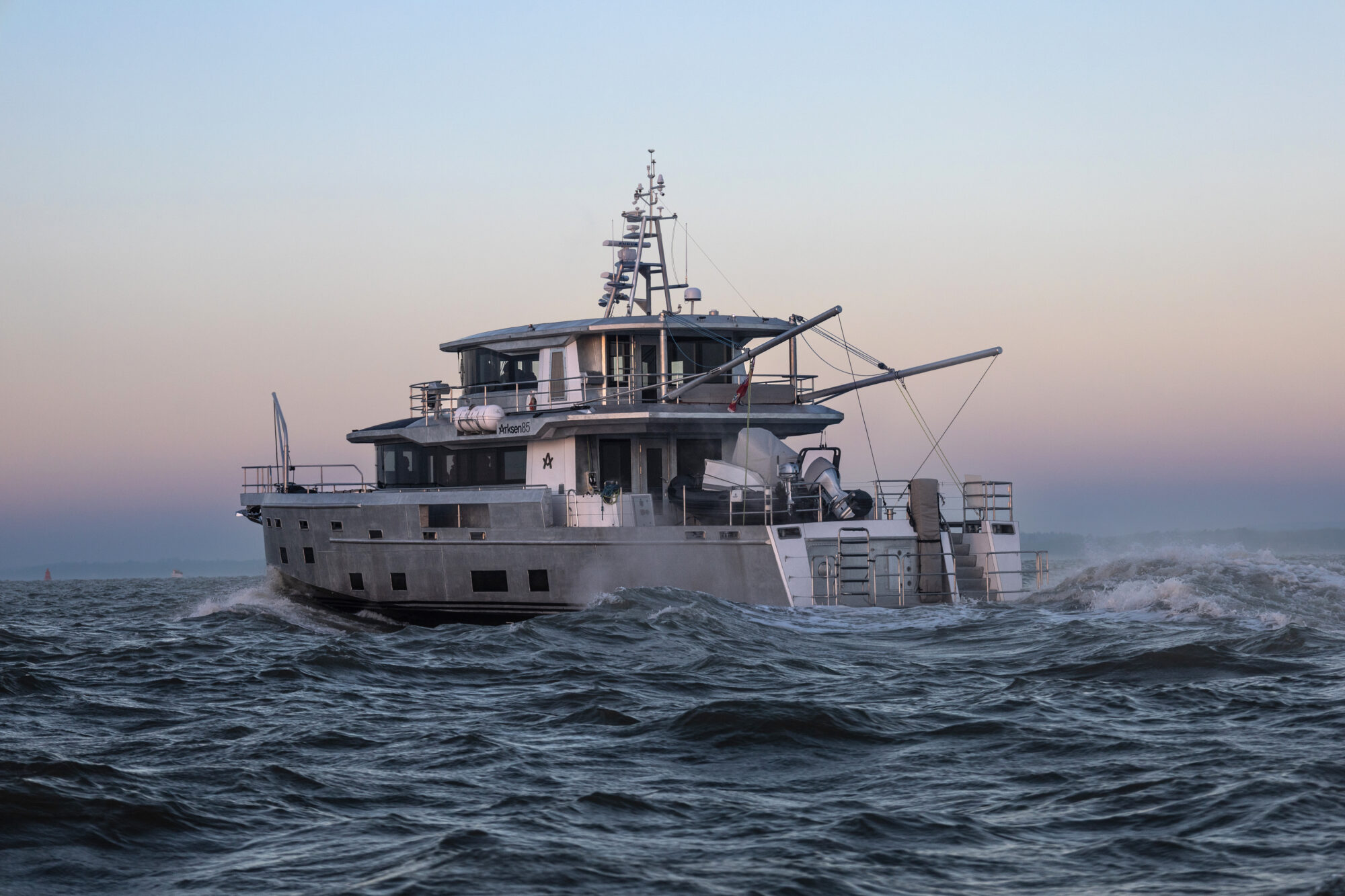

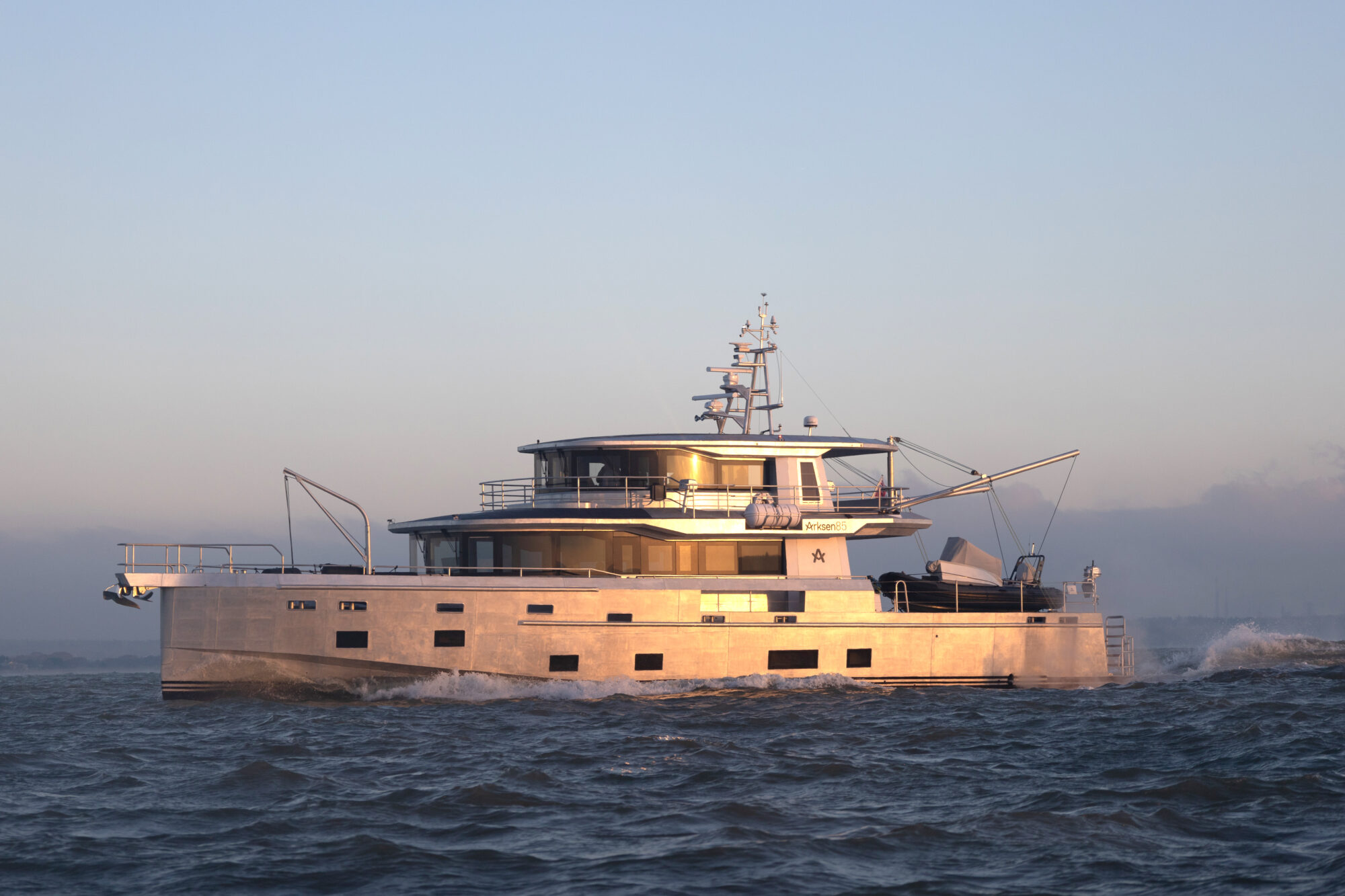

Arksen 85

Embark on thrilling expeditions aboard the Arksen 85, meticulously designed in collaboration between Arksen and Humphreys Yacht Design and expertly crafted by Arksen in the UK. Interior design and sustainable material selection by multi-award-winning, Design Unlimited.

She can comfortably accommodate six guests and two crew.
Arksen 85 embodies Arksen’s focus on safety, robustness and a seamless journey blending comfort, security and efficiency.

Built to meet commercial regulation (MCA) standards, this vessel offers unrivalled accessibility, empowering you to explore remote destinations with confidence and peace of mind.

Designed to handle any obstacle, Arksen 85 lets you embark on remarkable adventures with unwavering assurance.
This vessel is a testament to innovative engineering, seamlessly combining remarkable efficiency with unmatched comfort.

Its advanced hybrid propulsion system, state-of-the-art stabilization technology and exemplary systems engineering optimize efficiency while reducing emissions, noise and vibrations.

Supported by active fin and gyro stabilizers, Arksen 85 ensures supreme comfort and stability throughout your voyage.
Designed for simplicity of operation and minimal maintenance, Arksen 85 allows you to fully immerse yourself in the excitement of exploration.

The hybrid propulsion system offers multiple redundancy and in-service maintenance, ensuring your focus remains on your adventures and reducing the need for downtime.

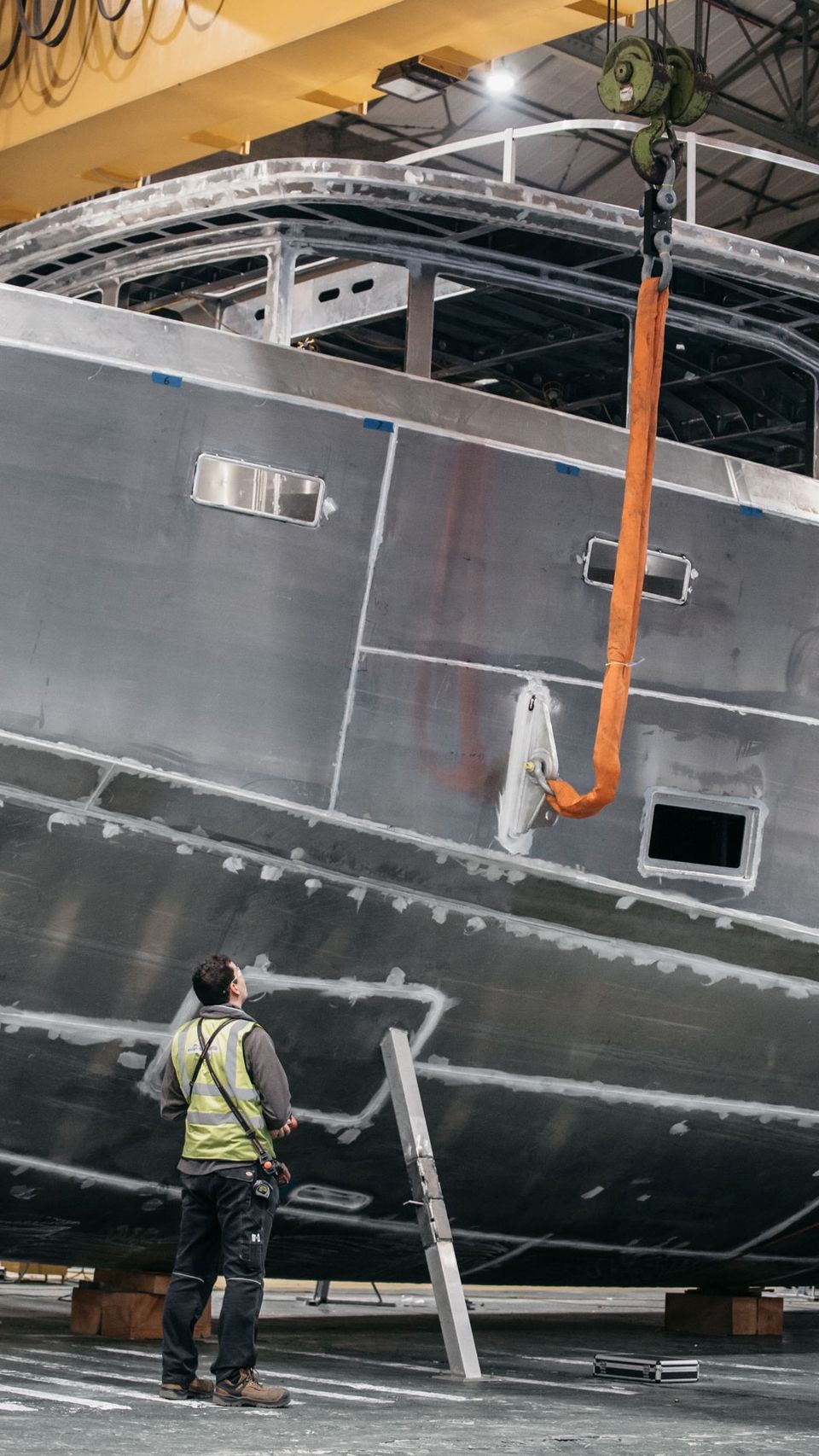

Her aluminium construction provides exceptional strength, corrosion resistance and insulation, minimizing the level of maintenance required.
The choice of an aluminium superstructure was an important one, as it reduces her environmental impact.

The aluminium is made from 40% recycled content and is fully recyclable at the end of life, reflecting a strong commitment to sustainability.
Arksen 85 has been designed and engineered for progressive, “preservation” cruising — a first in yachting.

This means she has a truly transoceanic 7,000nm range (comparable to motor yachts three times her size). She has the ability to switch to zero emissions mode and silent running at your destination, thanks to the solar array and hybrid propulsion.

The virtual anchor also enables the vessel to visit protected marine environments and leave no trace.
Arksen and Humphreys Yacht Design have achieved this by developing a very efficient low displacement/length ratio hull form and incorporating features such as twisted flow rudders to minimize resistance.

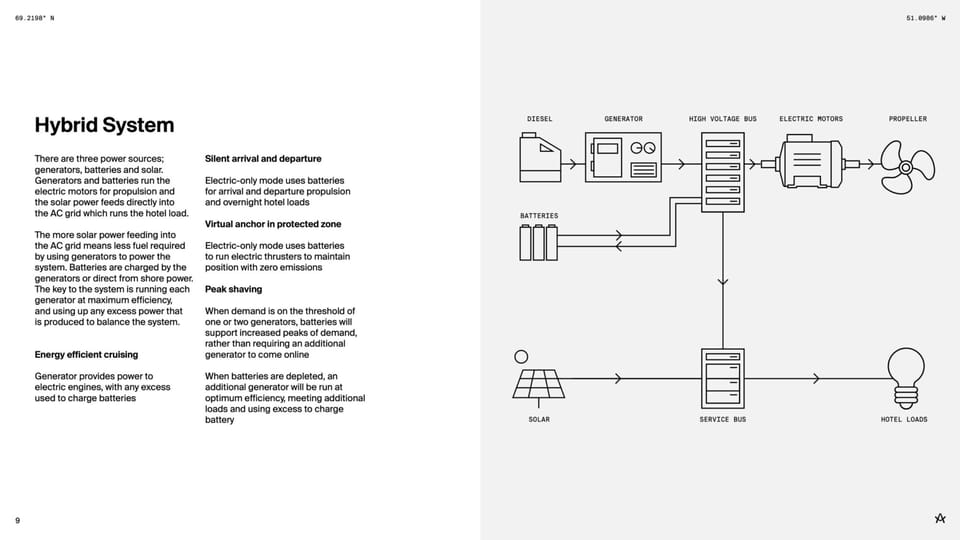

This will naturally benefit the owners’ running costs and reduce emissions. Her hull design is complemented by the Praxis hybrid propulsion system.

Arksen 85 achieves near-silent running at all times as the electric motors and generators are mounted and insulated to limit noise and vibrations.
Embark on your adventures knowing you’re treading lightly on the environment, enabling future generations to enjoy our planet’s wonders.

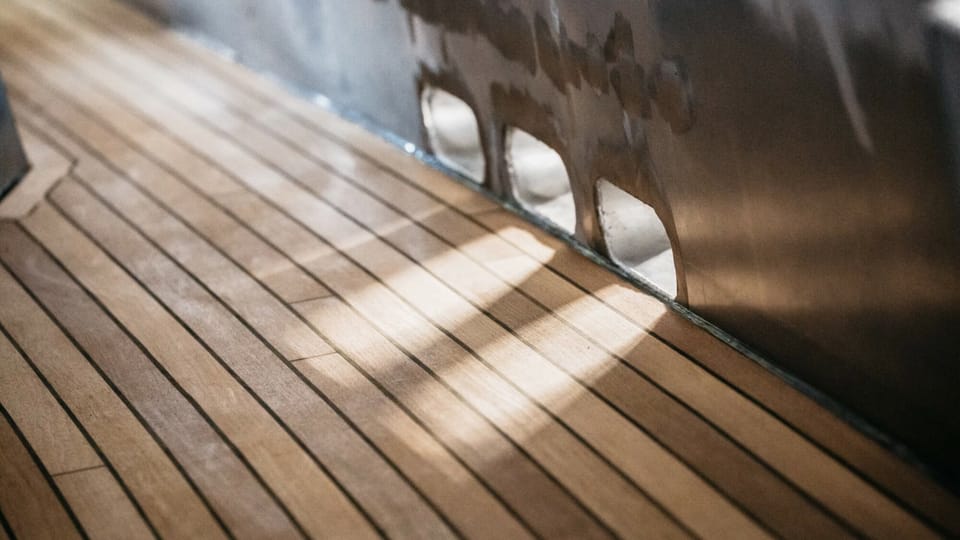

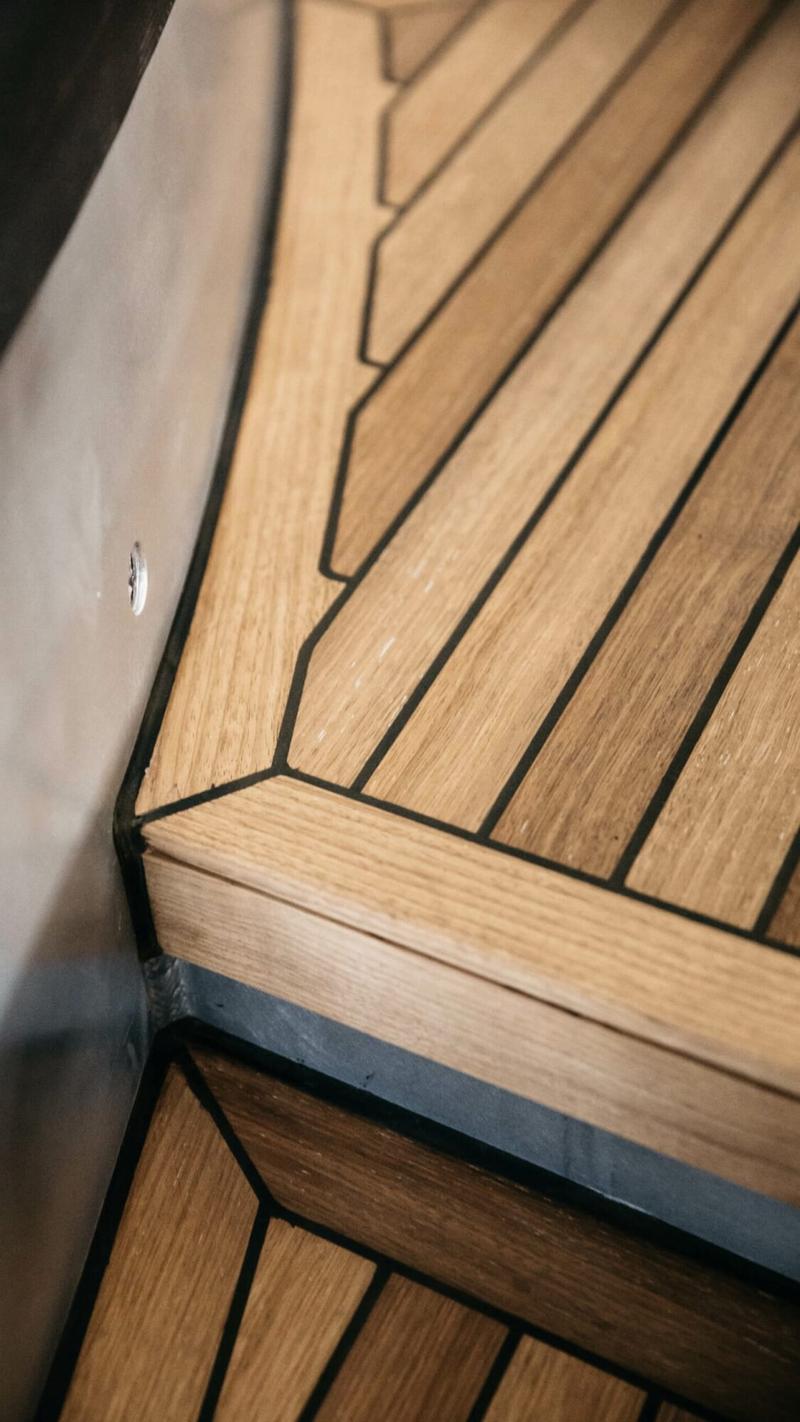

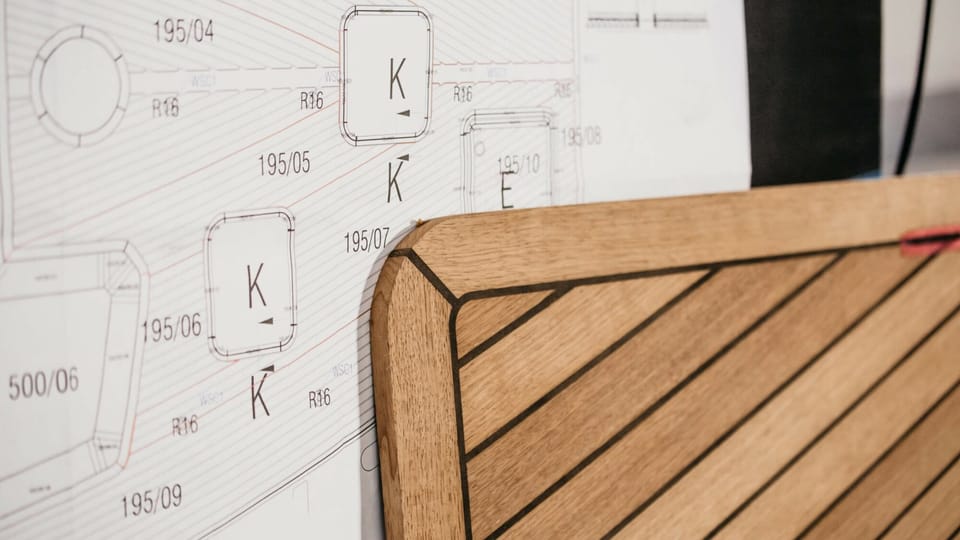

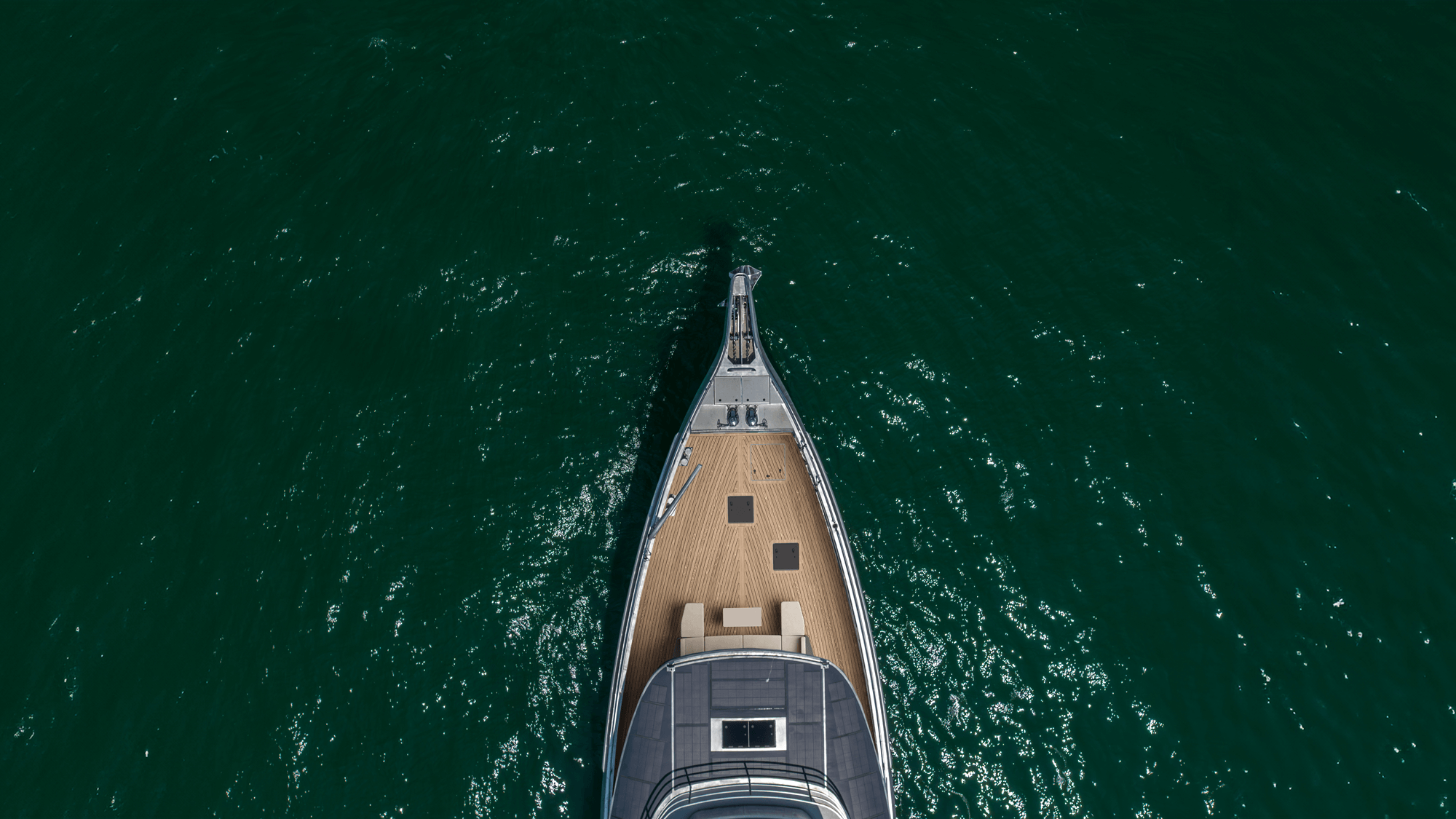

Complementing her exceptional capabilities, Arksen 85 features a custom-fitted Tesumo timber deck with a 3D milled cork panel underlay that follows the contour of the deck structure on the underside and provides a perfectly flat surface on the top.

In addition to reducing the adhesive required during installation, the cork layer provides additional acoustic and thermal insulation.
The large aft deck was designed to be a flexible space for storage for up to a 5.5m tender, with a high-capacity crane or to allow for vital ocean research.

Owners who take the Arksen Sea Time Pledge gain access to a global network of scientists looking to conduct research in some of the most beautiful and fragile locations.

You have the opportunity to gain an ultimately unique experience for you and your guests while also providing vital ocean access for marine scientists and researchers.

This remarkable attribute sets this Arksen 85 apart from similar vessels of the same size, enhancing your adventures and embracing the spirit of exploration.
Embark on an extraordinary journey aboard Arksen 85, where reliability, robustness and breath-taking discovery converge.

This true exploration yacht ensures your safety, unrivalled comfort and effortless operation. With minimal maintenance and profound respect for the environment, she paves the way for remarkable expeditions that redefine your perspective.
Highlights

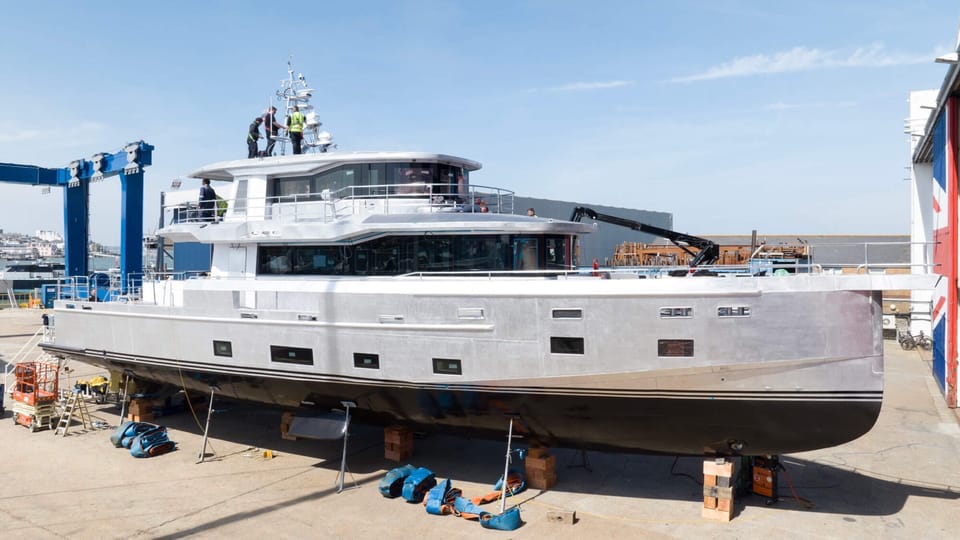

New build 99% completed by Arksen on the Isle of Wight
Hybrid propulsion system for high efficiency, lower emissions, silent running, low vibrations
Aluminum-built for minimal environmental cost and fully recyclable; excellent quality in terms of weight, strength, corrosion resistance and insulation
Zero speed stabilization system
Built to commercial regulation (MCA) and below 24-meter load line
Low maintenance and running costs
Ample storage capacity for up to 5.5 meter tender and toys
3 guest cabins for up to 6 guests
Open galley on the main deck

Specifications

Builder
Arksen

Model
85

Length (LOA)
27.3m

Year
2024

Gross Tonn.
112

Draft
1.55m

Beam
7.01m

Range
7,000 NM

Location
Southampton

Accommodations

Staterooms
3

Sleeps
6

Twin Beds
2

Heads
4

Crew Cabins
1

Crew Sleeps
2

Dimensions & Capacity

LOA
27.3m

Max Draft
1.55m

Fuel Tank
18,000 L

Fresh Water
6,000 L

Holding Tank
1,400 L

Gross Tonn.
112

Displacement
112

Construction

Hull Material
Aluminum

Hull Config
Fast Displacement

Max Speed
14 Knots

Cruising Speed
12 Knots

Range
7,000 NM

Stabilizers
Standard and Zero Speed

Hull & Dimensions

Type:                            Arksen 85
Hull:                             Aluminum
Superstructure:        Aluminum
Builder:                       Arksen Ltd
Model:                          Arksen 85
Year built:                   2023
L.O.A:                            27.40m
Hull length:                 26.22m
Beam:                           7.01m
Draft:                            1.55m
Displacement:            Full Load 112 tonnes
Cruising Speed:          9-12 knots
Max Speed:                  14 knots
Max Range:                  7,000 nm
Max Electric Range:   30 nm
Design:                          Arksen / Humphreys Yacht Design

Mechanical Equipment

Engines: 3 x 200kW Variable Speed Diesel Generators (Praxis Hybrid System)
Propulsion: 2 x 250 kw Electric Motors
Fuel Capacity: 18,000 litres
Fresh Water capacity: 6,000 litres
Black water tank: 900 litres
550 litres sludge tank
Keenan Fuel Polishing System
Cathelco Seafresh H2016 Mk3 Duplex RO Water Maker, 2 x 276 lph
Cathelco HEM Water Softener
Hamman Compact 0125 Sewage Treatment Plant
Thrusters: OYS 36kW Fixed Bow Thruster/ OYS 36kW Swing Down Stern Thruster
Control: Wireless, joystick control position keeping and manoeuvring system
Stabilisation: Humphree Fin Stabilisers
1 x SK 09 and 1 x SK 18 Seakeeper Gyro Stabilisers
Humphree Interceptor Ride Control System
Air Conditioning: MAR-IX Air Conditioning System
Heating: CWarm 33 Diesel Boiler

Electricity

Generators: 3 x 200kW Variable Speed Diesel Generators
Batteries: – 160kWh LiFePO4 Propulsion/House Batteries in A60 Battery Room
                   – 200 Ah LiFePO4 24V DC Service Battery Bank
                   – 300 Ah LiFePO4 24V DC Emergency Battery Bank
                   – 100 Ah LiFePO4 24V DC GMDSS Battery Bank
Shore Power: 3 Phase 63A 50Hz or 60Hz, Glendinning shore power cable reels
AC Power: – 3-Phase 400V 50Hz AC Power to primary consumers
                    – Single Phase 230V 50Hz AC Domestic ring main
Solar Power: 6kW Maximum output

Navigation

4 x 24” Touchscreens at the main bridge for navigation, control and monitoring
2 x 24” Touchscreens at the lower bridge for navigation, control and monitoring
2 x Furuno DR12A NXT Open Array Radar Scanners
Anschutz Standard 22 Compact Gyro Compass with heading repeaters at each bridge
Furuno SCX-20 GPS Compass
Furuno PG700 Solid State Rate Gyro Fluxgate Compass
Furuno Autopilot, control head at each bridge
Furuno GP170 GPS
Furuno GP39 Backup GPS
Furuno FA-170 Class A AIS
Furuno FI-70 Instruments at main bridge, lower bridge, crew cabin
Furuno TZT3 9F MFD in crew cabin
FLIR M364C Stabilised Camera
4 x External, 2 x Engine Room, 1 x Battery Room CCTV Cameras
Network Video Recorder

Communication

2 x Furuno FM4850 VHF with handsets at the upper and lower bridge
Thrane LT-3100S Iridum GMDSS
Furuno Felcom 9 Inmarsat C Terminal
Sailor 4300 Iridium Certus Satellite Data
KVH VSAT V7HPS Satellite Data
Furuno NX700B Navtex
Yellowbrick YB3i Tracker
Pepwave MAX BR1 Mk2 4G Router
Onboard WiFi Network

Audio & Video

Sony 55” TV on a lift in the main saloon
Sony 40” TV on lift in upper saloon
Sony 43” TV in snug/office
Samsung 32” Frame TV in master cabin
Apple TV, Chromecast and network connection for each TV
Sonos Audio in each cabin and saloon
Sonos Audio at main deck and upper deck aft seating areas
Sonos Move portable audio for external spaces
Out

Class-R Media Server
Crestron Control of AV and Hotel Systems

Deck Equipment

Ultra 130 kg SHHP Stainless Steel primary anchor
Lewmar Claw 80kg Stainless Steel secondary anchor
140m of 14mm stainless steel short link chain per anchor
2 x Lewmar V8 3-ph Vertical Stainless Steel windlass with Gypsy and Warping Drum
2 x Andersen 62 stainless steel self-tailing winches for aft deck line handling
2 x Lewmar EST REVO back winding winches for outrigger and lifting control
Opacmare 3078-45 hydraulic crane for tender handling
Carbogale carbon fibre folding gangway

Accommodation

Master Suite configured as double ensuite bedroom, plus snug/library/office/cabin with direct access
Port guest cabin can be configured as double, twin, or triple
Starboard guest cabin can be configured as single or double
Twin crew cabin
Laundry/utility/storage space
Main deck aft lobby with storage and day head/shower

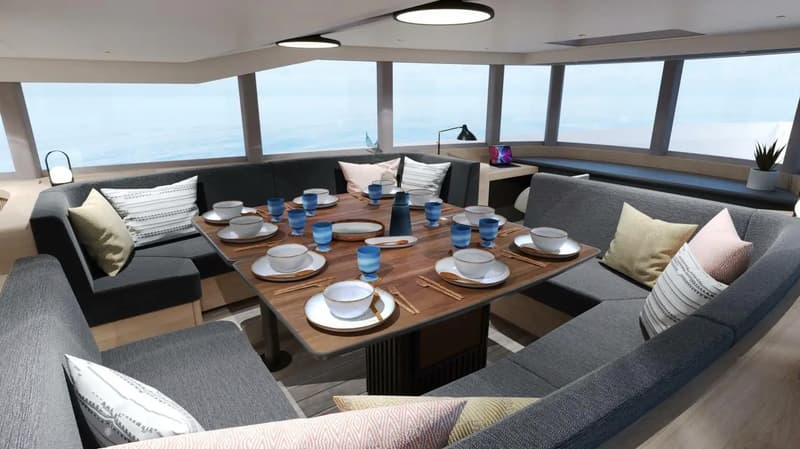

Open plan galley and large seating/dining area on the main deck.

Office/concealed bridge area forward.
Seating/dining area on bridge deck. Ships office/chart table. Bridge area forward.
Seating/dining area on main deck aft. Awning for shade. Servery/BBQ area.
Seating/dining/sunbathing area on the main deck forward.

Awnings for shade.
Seating areas on the bridge deck forward and aft
External decks covered in Tesumo sustainable timber
